 J-3 Cub Construction Project Session #33

33 J-3 Nose Block Shown on the Herr Kit Cover Picture

After I finished gluing the short piece of aluminum tube into the nose block hole to position the plastic prop bearing this morning, I noticed the picture below on the Herr kit box. Notice how long that nose block is! It is certainly not the nose block profile shown on their plans nor is it scale. The distance between the forward exposed cylinder and the prop is longer than the engine itself!

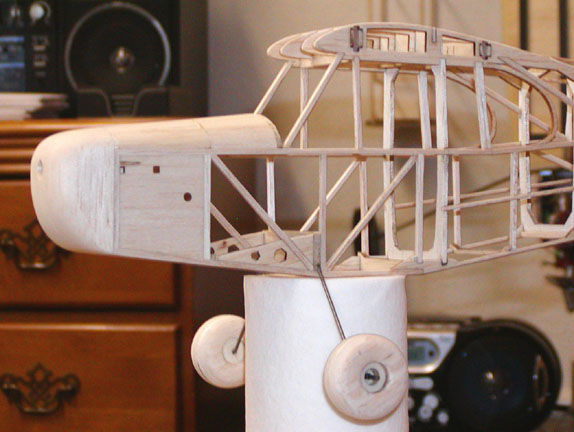

As a matter of fact, it looks a lot like my new nose block shown below......................Tandy
