 J-3 Cub Construction Project Session #29

29 J-3 Cub Right Wing Finished

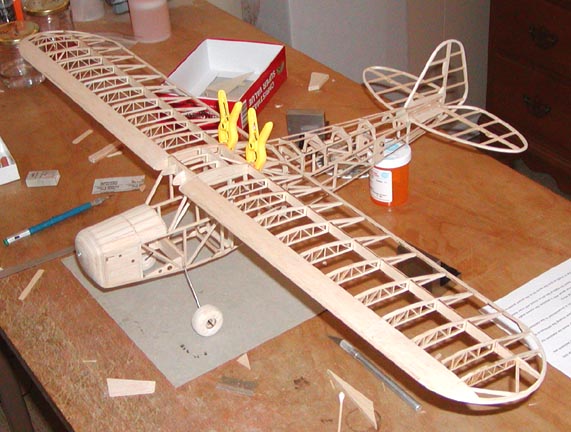

Well guys, I finished the right wing panel today. I spent the day planking the top of the leading edge, integrating the wing tip spline into the right wing structure, and shaping the trailing edge. This time I dialed in the correct root rib dihedral angle on the right wing panel. I assembled the model this afternoon just see what this J-3 Cub is going to look like. As the picture below shows, the structure looks pretty good. My next step will be to work out the two leading edge planking areas over the cockpit that are adjacent to the two wing root leading edges.....................Tandy
